Quick Details

  • Seats: 21 - 40
  • Emission Standard: Euro 2
  • Transmission Type: Manual
  • Max Speed: 51 - 70 km/h
  • Steering Position: LHD
  • Fuel Type: Diesel
  • Place of Origin: Henan, China (Mainland)
  • Model Number: LG6900C4ER-LHD
  • Name: 40seats used city bus,9meters
  • Dimension: 8960x2500x3200
  • Weight: 12280 kg
  • Max. speed: 69 km/h
  • Seat capacity: 37
  • Framework: Straight beam
  • Engine model: EQB180-20
  • Emission standard: Euro II
  • Fuel type: Diesel
  • Tire: 8.25-20

Packaging & Delivery

Delivery Time Shipped in 30 days after payment

40seats used city bus,9meters

Product Description
Bus Specification
  Standard Configurations:

ITEM

LG6900C4ER-LHD

DIMENSION

LENGTHxWIDTHxHEIGHT(MM)

8960x2500x3200

Tread F (MM)

2020

Tread R (MM)

2800

WHEELBASE (MM)

4200

WEIGHT

TOTAL MASS (KG)

12280

PERFORMANCE

MIN. VEHICLE TURNING CIRCLE (M)

24000

MAX. SPEED (KM/H)

69

/ANGLE (APP/DEP)

8/8

SEAT CAPACITY

37 seats

FRAMEWORK

STRAIGHT BEAM

ENGINE

MODEL

YC6J200-20/147KW

EQB180-20

TYPE

6 CYLINDER IN-LINE

RATED-POWER (KW/R/MIN)

147KW

MAX. TORQUE (N.M)

760

DISPLACEMENT (L)



EMISSION STANDARD

EURO II

FUEL TYPE

DIESEL

CLUTCH

TYPE

SINGLE PLATE corkscrews CLUCH

SIZE

430

CLUTCH BOOST

WITH  PUMP

TRANSMISSION

MODEL

DF5S550

MAX. TORQUE

550

SHIFTS

5 SPEED MANUA

CONTROL SYSTEMS

FLEXIBLE  SHAFT

FRONT AXLE

4.48T

REAR AXLE

7.8T

BRAKING SYSTEM

STEERING

POWER STEERING

SERVICE BRAKE

DUAL-CIRCUIT AIR BRAKING SYSTEM

PARKING BRAKE

Diaphragm spring brake

F/R BRAKING DIA.

400

F/R BRAKING SHOE Width

130/155

SUSPENSION STYLE

STEEL LEAF SPRING

TYRE

8.25-20

OIL TANK CAPACITY

200L


  Bus Body and Electric Appliance:

ITEMS

NAME

SPECIFICATION



Remark

1

FRONT WINDSCREEN

FIXED, LAMINATED GLASS,



2

REAR WINDSCREEN

FIXED, TOUGHENED GLASS



3

INSTRUMENT BOARD

WHOLE SEALED



4

INNER DECORATION

PLASTICS



5

REARVIEW MIRROR

POLE TYPE



6

INSIDE MIRROR

STANDARD



7

PASSENGER DOOR

PNEUMATIC INTERIOR SWING DOOR



8

SIDE WINDOW

WHOLE SLIDING



9

DRIVER SEAT

VINYL FRONT/ REAR ADJUSTABLE  DRIVING SEAT



10

PASSENGER SEAT

VINYL PASSENGER SEAT WITH ARMREST



11

CLEARSTORY

11UNIT



12

HANDRAIL

 door handrail



13

FLOOR BOARD

STEEL DECORATIVE PATTERN FLOWER



14

RAIN WIPER

OPPOSITE



15

RADIO

AM/FM RADIO



16

FROTH

10FRONT,REAR,TOP AND SIDE (10 MM THICK)



17

ANTISEPSIS GRADE

SUPERFINE



18

SAFETY EXIT

YES



19

ENGINE COVER

YES




Detailed Images

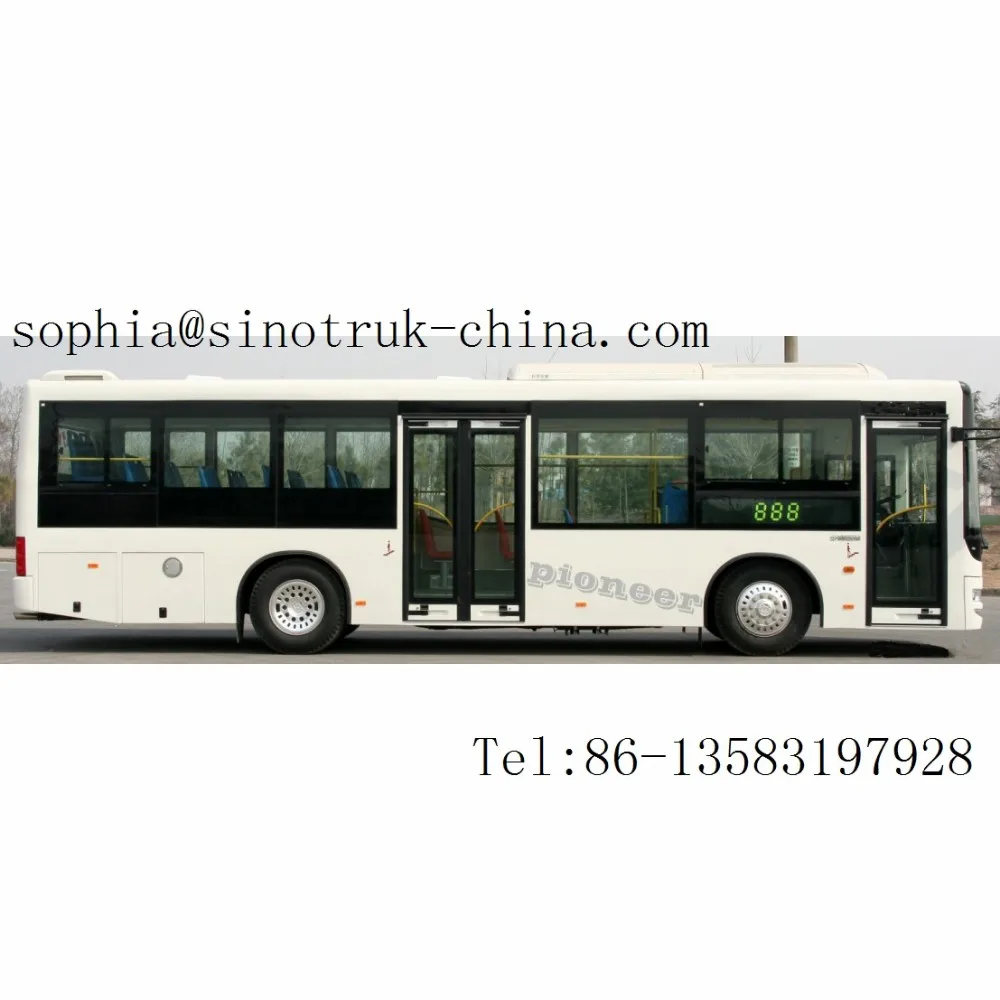

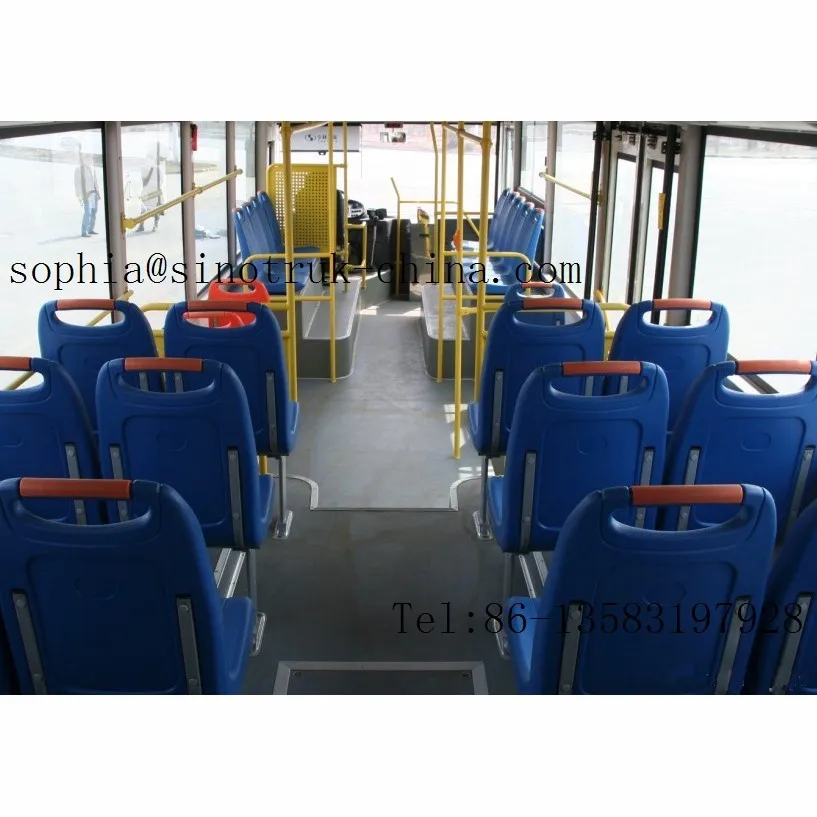

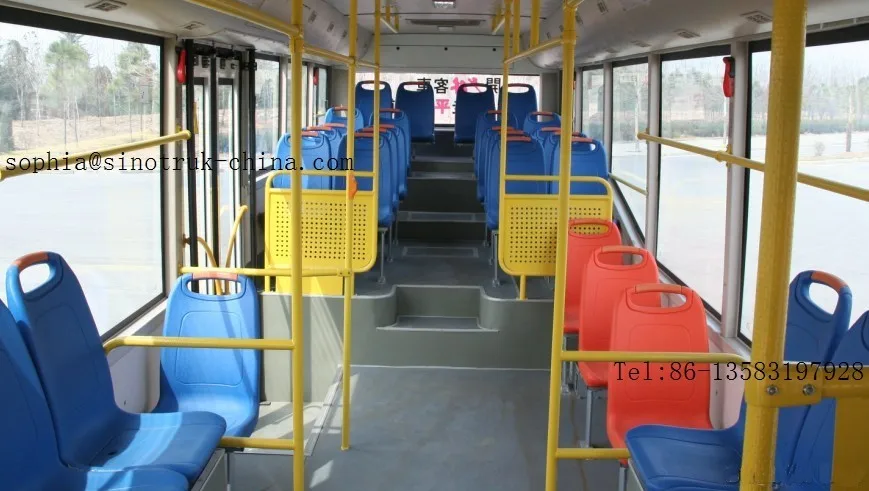

Bus Product pictures

Company Information
Company information

About Us :Jinan Heavy Truck Import&Export Co., Ltd

Jinan Heavy Truck Import&Export Co., Ltd  is a business trade and technology development high-tech enterprise, focused on all kinds of heavy duty truck, Bus,machinery together with all the original spare parts exporting and service.


We have a high-quality technical and sales team, engaged in researching and designing special purpose vehicle and related transportion equipment. We also cooperate with large domestic special purpose vehicle factory and scientific research institutions. So we can provide the full life cycle solution of the product to the customer through all aspects of designing, production supervision, delivery and after-sale service.
