bulk cement transport truck semi trailer 50m3

FOB Reference Price:Get Latest Price
US $11,000-14,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
1000 Unit/Units per Month
Port:
Longkou/Tianjin
Report Suspicious Activity
Overview
Quick Details
Use:
Other Trailers
Max Payload:
60T
Size:
11120mm*2500mm*3990mm
Place of Origin:
Shandong, China (Mainland)
Axle:
Fuwa Brand
Color:
Red
Packaging & Delivery
Packaging Details
nude

bulk cement transport truck semi trailer 50m3

Product Description
Specification

Tank Body

Shape

Optional ( One Silo with V type)

Dimension

12000mm*2490mm*3990mm ( Exact size depends on the final design)

Tare weight

About9600KGS

Total Volume(m3)

30m³-60 m³

Tanker Body Material

5mm / Q235 carbon steel

End Plate

6mm  or 5mm /Q235 carbon steel

Diesel Engine

WEICHAI ,Tianhe4102 or other brand

Compressor

BOHAI 12 m³or other brand

Manhole Cover

Carbon steel Φ500mm

Discharging Valve

Diameter is 3 or 4 inch

Discharging Pipe

3 or 4 inch rubber hose, 1pcs,  6m/each

Cat Walk

With (Common model or special movable design)

Chassis

Main Beams

Welding Design  ,Q345 carbon steel

Axle

3 axles, /13T, FUWA/HUAJING ,BPW brand

Landing Gear

JOST (C200T) FUWA28T double speed type

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension  special export type

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30/T30 Spring brake chamber ; 45L air tanks.

Rim

8.25-20 or 9.00-22.5  China Brand

Tire

11.00R20 or 12.00R22.5,315/80R22.5  Brand can be Optional

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box  with tire spanner or axles cover

Shipping Terms

By Bulk Cargo ,RORO or bus deck container ,frame container

Detailed Images

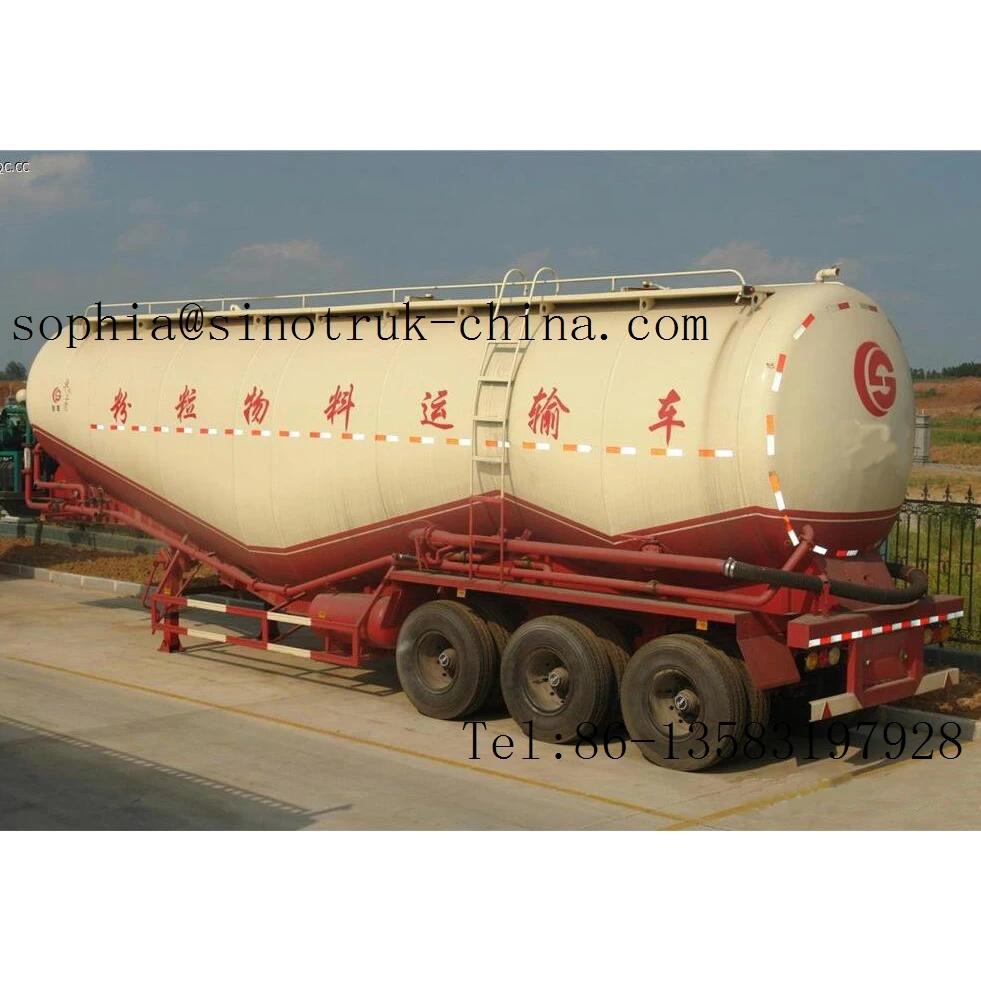

Product pictures
Company Information

Company information

Jinan Heavy Truck Import&Export Co., Ltd  is a business trade and technology development high-tech enterprise, focused on all kinds of heavy duty truck, Bus,machinery together with all the original spare parts exporting and service.


We have a  researching and designing special purpose vehicle and related transportion equipment. We also cooperate with large domestic special purpose vehicle factory and scientific research institutions. So we can provide the full life cycle solution of the product to the customer through all aspects of designing, production supervision, delivery and after-sale service.
